Mechanical Seal vs Gland Packing — Which is Right for Your Pump?
When a centrifugal pump leaks at the stuffing box, you face one decision before anything else: replace the gland packing, or convert to a mechanical seal. Both solve the same problem. Both are widely used across South African industry. But they solve it differently, they cost differently over time, and the wrong choice for your specific operating conditions will either fail early or cost you money you did not need to spend.
This guide covers the real differences — not the catalogue version, but the engineering version that tells you what actually works in your operation.
What Gland Packing Actually Does

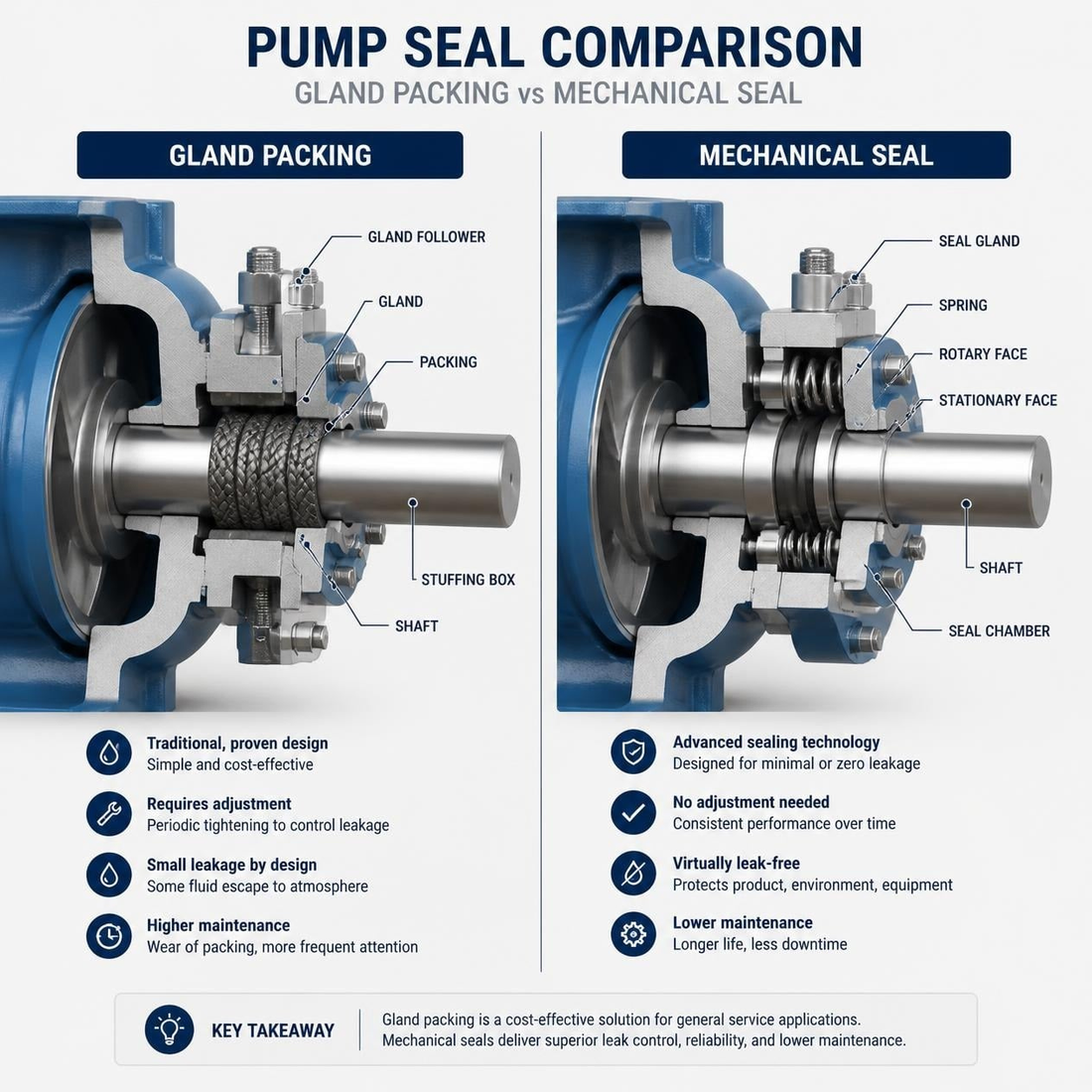

Gland packing sits in the stuffing box around the pump shaft and creates a seal through compression. Rings of braided packing material — graphite, PTFE, aramid, carbon, or combinations of these — are compressed by a gland follower against the shaft sleeve. The seal works by controlled leakage: a small, deliberate amount of fluid passes through the packing to lubricate the shaft and carry heat away. Typically 10 to 20 drops per minute is considered acceptable leakage for a correctly adjusted stuffing box on a water-service pump.
The packing wears against the shaft sleeve over time and requires periodic adjustment — tightening the gland follower to compensate as the packing compresses and wears. Eventually the packing set needs replacing entirely. This is a maintenance-intensive sealing method, but it is also highly tolerant of misalignment, shaft deflection, and abrasive media — which is precisely why it remains the preferred choice in slurry pump applications across South African mining operations.
When gland packing is the correct choice:
- Abrasive slurry service where solids content and particle size would damage mechanical seal faces
- High shaft deflection applications where a rigid mechanical seal would fail from movement
- Pumps with poor alignment history or worn bearings that have not been corrected
- Applications where maintenance teams are experienced with packing adjustment and replacement
- Low-pressure, low-speed applications where the cost of a mechanical seal cannot be justified
- Emergency situations where a replacement packing set is available and a mechanical seal is not
Packing compounds matched to application:
- Graphite/carbon braided packing — high-temperature service including steam valves and boiler feed; handles very high temperatures (up to approximately 450–550°C in suitable valve and pump designs, within manufacturer design limits)
- PTFE packing — chemical service, aggressive media, food and beverage CIP circuits; excellent chemical resistance across most acids and alkalis
- Aramid packing — abrasive slurry service, high-pressure applications; superior abrasion resistance where graphite or PTFE would wear rapidly
- Carbon fibre packing — high-speed rotating equipment, high-temperature service; low friction coefficient reduces shaft sleeve wear
- PTFE/graphite combination — general industrial service across a wide temperature and pressure range; the most commonly specified compound for water and mild chemical service
What a Mechanical Seal Actually Does
A mechanical seal closes the gap between the rotating shaft and the stationary pump housing using two precision-lapped seal faces — one rotating with the shaft, one stationary in the gland plate — held in contact by springs and sealed on their outside diameters by elastomeric O-rings or gaskets. The faces run against each other with a microscopic fluid film between them that lubricates the contact and prevents both dry running and excessive leakage.
A correctly specified and installed mechanical seal in clean, non-abrasive service produces negligible leakage — near-zero under normal operating conditions. This is the fundamental advantage over gland packing: where packing requires controlled leakage to function, a mechanical seal is designed to prevent it.
When a mechanical seal is the correct choice:
- Clean water or mild chemical service where faces can maintain their sealing film without abrasive damage
- Applications where near-zero leakage is required — food and beverage, pharmaceutical, chemical processing with hazardous media
- High-speed pumps where shaft sleeve wear from gland packing contact would be excessive
- Applications where the total cost of ownership — including water consumption for flush, maintenance labour, and packing replacement frequency — exceeds the cost of a mechanical seal
- Pumps in continuous duty service where regular packing adjustment is impractical
- Where water or product contamination from packing leakage is unacceptable
Mechanical seal types and their applications:
Cartridge seals — the complete seal assembly arrives as a single pre-set unit that slides onto the shaft and bolts to the stuffing box face. Installation is straightforward and eliminates the measurement errors that cause most field-fitted seal failures. Recommended for any application where installation accuracy cannot be guaranteed, and for maintenance teams without mechanical seal fitting experience.
Multi-spring seals — multiple small springs distributed around the seal face maintain even face loading regardless of shaft rotation direction. Suitable for most centrifugal pump applications in clean to mildly contaminated service. The standard choice for general industrial pump sealing.
Taper spring seals — a single conical spring provides face loading. Simple, compact, and cost-effective for smaller pumps in clean water service. Common in domestic and light industrial pump applications.
Bellows seals — a metal or elastomeric bellows replaces the spring and secondary O-ring, eliminating the sliding secondary seal that causes hang-up in crystallising or sticky media. Specified for chemical service where conventional spring seals would seize or corrode.
Wave spring seals — a compact, low-profile spring design for installations with limited axial space. Functionally equivalent to multi-spring seals in most applications.
The Direct Comparison — Operating Conditions
| Factor | Gland Packing | Mechanical Seal |
|---|---|---|
| Leakage | Controlled — typically 10–20 drops/min acceptable | Near-zero in clean service; orders of magnitude lower than packing |
| Abrasive media tolerance | High — aramid compounds handle high-solids slurry well | Low — abrasives score and damage lapped faces quickly |
| Shaft deflection tolerance | High — packing accommodates movement | Low — deflection can cause face separation and early failure |
| Maintenance frequency | High — regular adjustment, periodic repacking | Low — designed for run-to-failure or planned replacement intervals |
| Installation skill required | Low — most maintenance teams can adjust and repack | Medium to high — incorrect fitting is the main cause of early failure; cartridge seals reduce this risk |
| Initial cost | Low — packing sets are inexpensive | Higher — especially for cartridge and double seals |
| Total cost of ownership | Higher in clean service — water loss, sleeve wear, labour, downtime | Lower in clean service — longer life, minimal intervention |
| Temperature range | Wide — graphite packing handles high-temp steam service within design limits | Limited by elastomer and face material selection; can be extended with special materials |
| Pressure range | Moderate — high pressure needs more frequent adjustment | High — mechanical seals handle high differential pressures effectively when correctly specified with balanced designs and appropriate materials |
| Chemical resistance | Compound-dependent — PTFE handles most chemicals | Face and elastomer material-dependent — very wide range available |
The Total Cost of Ownership Question
The biggest reason maintenance teams hesitate to move from gland packing to mechanical seals is upfront cost. A cartridge mechanical seal costs noticeably more than a set of packing rings. On a single pump, that comparison looks simple.
Across a fleet of pumps in continuous operation, the picture changes. In clean water service, gland packing can consume up to several litres of water per hour per pump as flush and leakage, depending on pressure and adjustment state. Across 20 pumps running 24 hours per day, that is hundreds to over a thousand litres per day — before you count shaft sleeve wear, labour for adjustment and repacking, and production losses when packing fails between adjustment cycles.
A correctly specified mechanical seal in the same clean service can run for 2 to 5 years with no routine intervention, provided the service is clean, alignment is good, flush and cooling are adequate, and dry running is avoided. Over a 3-year horizon, the total cost almost always favours the mechanical seal in clean service once you include water, labour, sleeve replacement, and downtime.
In abrasive slurry service, the calculation reverses. Mechanical seal faces in high-solids slurry can fail within days. Aramid packing in the same application can last months. The right choice is not the more sophisticated component — it is the one that actually works in your plant under your operating conditions.
How to Specify the Right Option for Your Application
Before deciding between gland packing and a mechanical seal, confirm these four parameters:
1. What are you pumping?
Clean water, mild chemicals, and non-abrasive fluids favour mechanical seals. Slurry, abrasive media, and fluids with suspended solids favour gland packing, unless a robust seal with hard faces and a proper flush plan is feasible. High-temperature fluids require compound and material selection specific to the temperature range regardless of which option is chosen.
2. What is the shaft speed and condition?
High shaft speeds generate more heat in a stuffed box and accelerate sleeve wear — this points towards mechanical seals. Worn bearings, shaft deflection, and poor alignment favour gland packing's tolerance of movement while root causes are addressed on the ground.
3. What does your maintenance team know?
A mechanical seal installed incorrectly will fail faster than gland packing adjusted correctly. If your team has limited mechanical seal fitting experience, a cartridge seal eliminates most installation variables. If that experience is not available and support cannot be arranged, gland packing remains the safer and more forgiving option.
4. What is the true total cost over 36 months?
Include water or product loss from leakage, shaft sleeve wear and replacement, labour for adjustment, repacking and seal changes, and production losses from unplanned stoppages. In most clean-service pump applications, the break-even point between packing and a mechanical seal falls within 12 to 18 months. After that, the seal typically pays for itself.
Safety and Compliance
If you are handling hazardous, toxic, or volatile fluids, controlled leakage from gland packing is not always acceptable from a safety or environmental compliance perspective. Standards such as API 682 (ISO 21049) and increasingly stringent environmental regulations push plants towards mechanical seals — particularly double seals with a barrier or buffer fluid — to achieve near-zero emissions at the seal face.
Gland packing, by design, leaks. That is acceptable for water and many benign services, but it creates compliance, housekeeping, and safety issues with anything dangerous or environmentally sensitive. If your operation falls under these requirements, a mechanical seal is not optional — it is the specified solution.
Kaybin's Capability
Kaybin manufactures and supplies both gland packing and mechanical seals from our facility in Benoni, Gauteng. We select compounds and seal types based on your actual operating conditions — not catalogue defaults, not the most expensive option, but what will actually work in your plant.
For gland packing, we supply PTFE, graphite, aramid, carbon, and combination constructions in standard and non-standard cross-sections, cut to length or supplied as pre-formed rings to your exact stuffing box dimensions.
For mechanical seals, we supply cartridge, multi-spring, taper spring, wave spring, and bellows designs, with reverse engineering capability for obsolete or non-standard seal configurations from a worn sample or drawing.
If your pump is leaking and you need to decide between repacking and converting to a mechanical seal, send us your operating conditions — pump model, shaft diameter, stuffing box dimensions, what is being pumped, pressure and temperature — and our technical team will specify the correct solution for your application.
