Metal Shims & Spacer Shims

Metal Shims & Spacer Shims for Machinery Alignment & Clearances

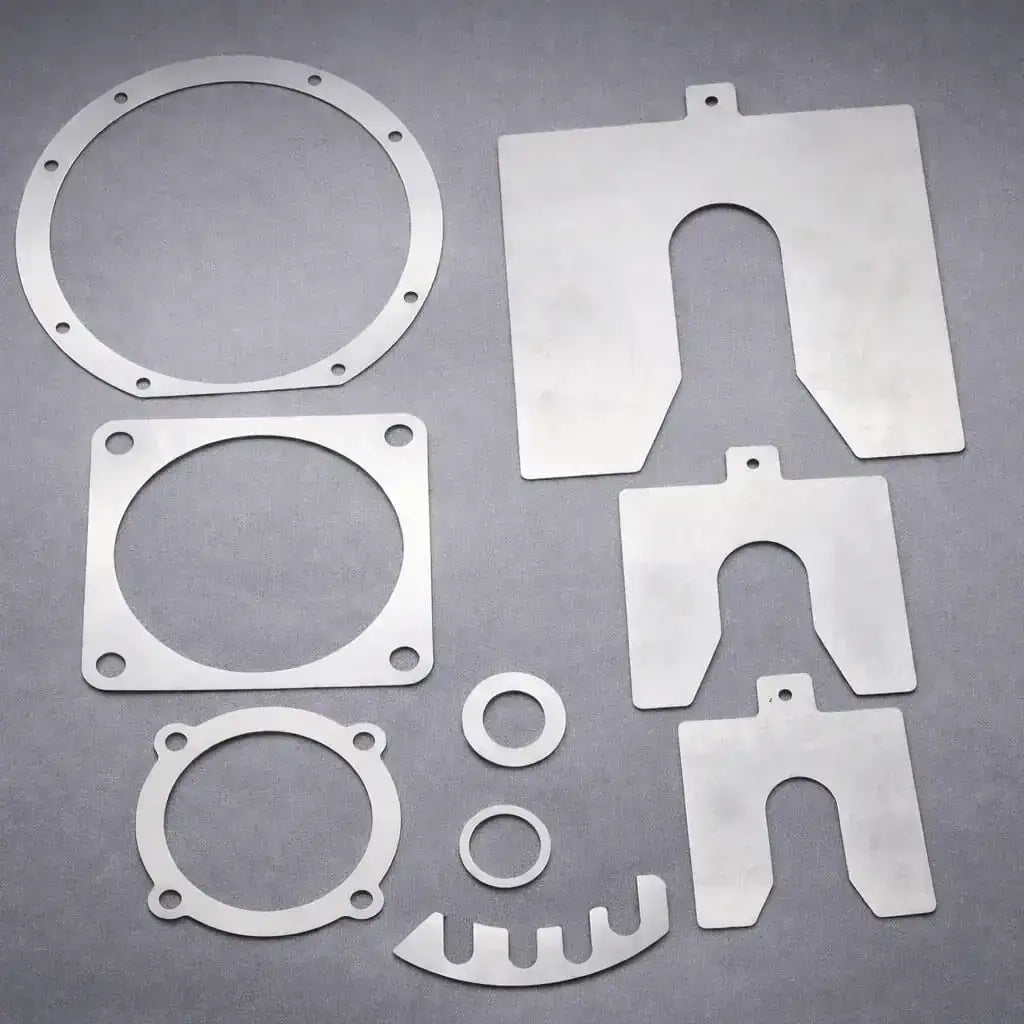

Kaybin manufactures precision metal shims and spacer shims to drawing or sample for machinery alignment, height adjustment, and clearance control. Parts are laser-cut or machined to size so fits, gaps, and loads stay within tolerance in industrial and OEM equipment.

Function & Typical Applications

• Set or correct clearances between mating parts
• Align motors, gearboxes, pumps, frames and structures
• Take up wear, thermal movement or fabrication variation
• Used on bases, feet, flanges, housings, brackets and OEM assemblies

Material Options

Shims are produced from application-specific metals:

• Stainless steel (304 ) – corrosion-resistant, clean environments, food/chemical duty
• Mild steel / carbon steel – general industrial use, painted or plated if required
• Brass / copper – good conductivity, non-sparking, specialty applications
• Other alloys on request where specific properties are needed
• Thickness, grade and finish are selected based on load, environment and adjustment range.

Operating Conditions

Designed for:

• Static load-bearing interfaces (feet, flanges, housings)
• Indoor or outdoor duty, including wet or corrosive environments (grade-dependent)
• Installations where accurate, repeatable alignment and gap control are critical
• Correctly specified shims help maintain alignment, reduce vibration and prevent premature wear or failure of rotating equipment.

Engineering Details Required

To manufacture the correct shim, provide:

• Application and location (base/foot, flange, housing, bracket, etc.)
• Material required (stainless, mild steel, brass, etc.)
• Shim outline (profile or drawing), thickness and slot/bolt pattern
• Load conditions and environment (corrosion, washdown, heat, etc.)

Kaybin then selects the appropriate metal and process and manufactures shims to your exact specification for reliable alignment and spacer duty in industrial and OEM equipment.
