Rubber & PTFE Industrial Diaphragms for Pumps, Valves

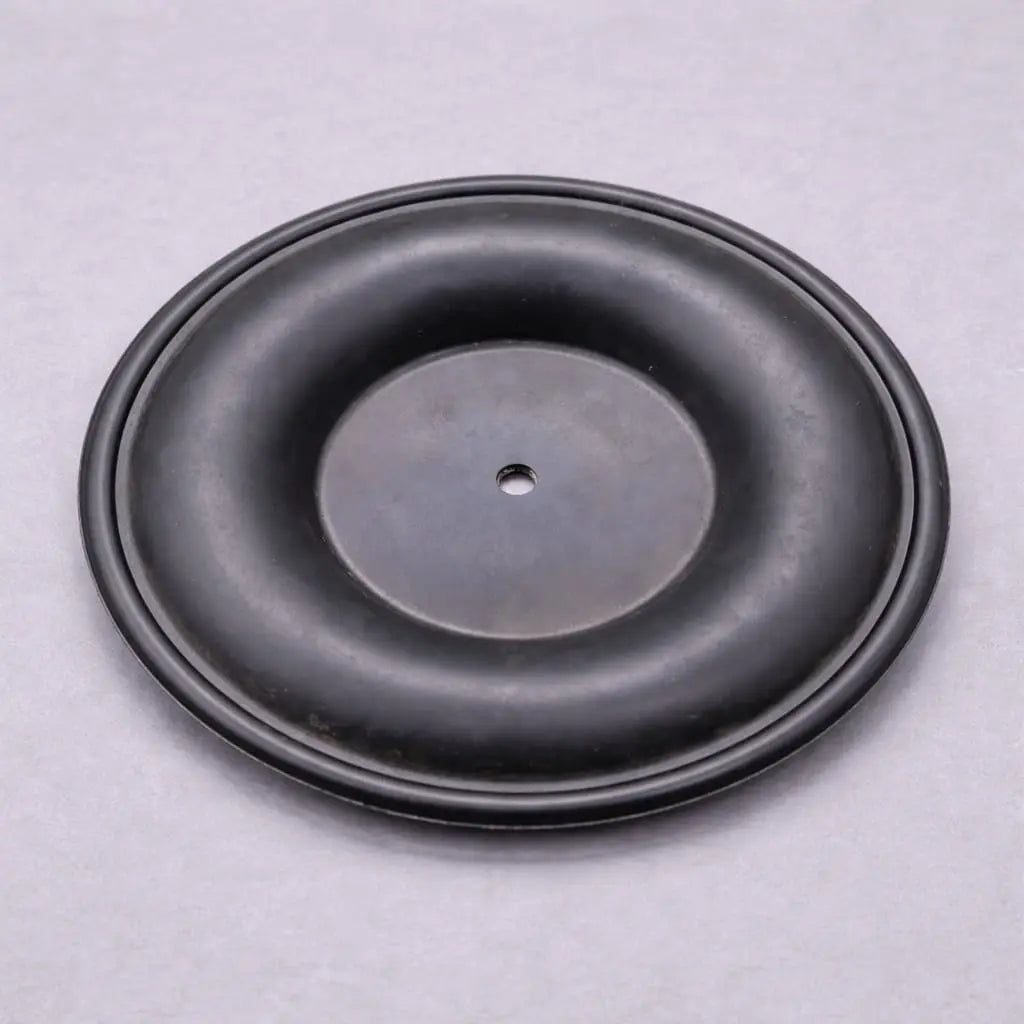

Kaybin manufactures custom rubber and PTFE industrial diaphragms for diaphragm pumps, air operated double diaphragm (AODD) systems, metering pumps and diaphragm valve assemblies where flexible media isolation and controlled displacement are critical.

Each diaphragm is moulded or machined to drawing or  sample to match housing geometry, bolt circle, clamping configuration and operating conditions. Compound, reinforcement structure and profile are selected according to pressure differential, stroke frequency, chemical exposure and duty cycle.

This page covers dynamic pump and valve diaphragms only. It does not include rupture discs, inflatable bladders or static gasket materials.

Application Coverage

• Diaphragm pump diaphragms

• Metering pump diaphragm replacements
• Industrial transfer pump membranes
• Diaphragm valve membranes
• OEM and reverse-engineered replacement diaphragms

Industrial diaphragm replacement support available across South Africa and Africa.

Diaphragm Types & Construction

Flat Diaphragms
Used in low-stroke or limited-displacement applications.

Convoluted / Rolling Diaphragms
Designed to reduce tensile stress during higher stroke applications.

Send your drawing or  sample and our engineering team will confirm compound, reinforcement and geometry before manufacture.
