Wear Bands & Guide Rings for Hydraulic & Pneumatic Cylinders

Wear Bands & Guide Rings for Hydraulic & Pneumatic Cylinders

Kaybin manufactures custom wear bands, guide rings and cylinder wear rings for hydraulic and pneumatic cylinders where side-load control, bore protection and stable running clearance are critical. These guidance components are supplied as cut rings, spiral lengths or strip/coil form and are machined or cut to suit your specified groove dimensions.

This page covers cylinder guidance elements (wear bands / guide rings / wear rings) only — not elastomer piston or rod seals.

Function & Typical Applications

Wear bands and guide rings are designed to:

• Guide pistons and rods under side load
• Prevent metal-to-metal contact between hardware and cylinder bore
• Reduce scoring, ovality and edge-loading
• Stabilise running clearances to protect seal performance

Commonly used in hydraulic presses, mobile hydraulics, mining cylinders, materials-handling equipment and pneumatic actuators where alignment stability is essential.

Cylinder Stack Context

In many cylinder assemblies, guidance forms part of a system: wiper → rod seal → rod guide ring → piston seals → piston wear band. The wear band stabilises the piston or rod and reduces side-load transfer into seals and bore surfaces.

Wear Band Forms Supplied

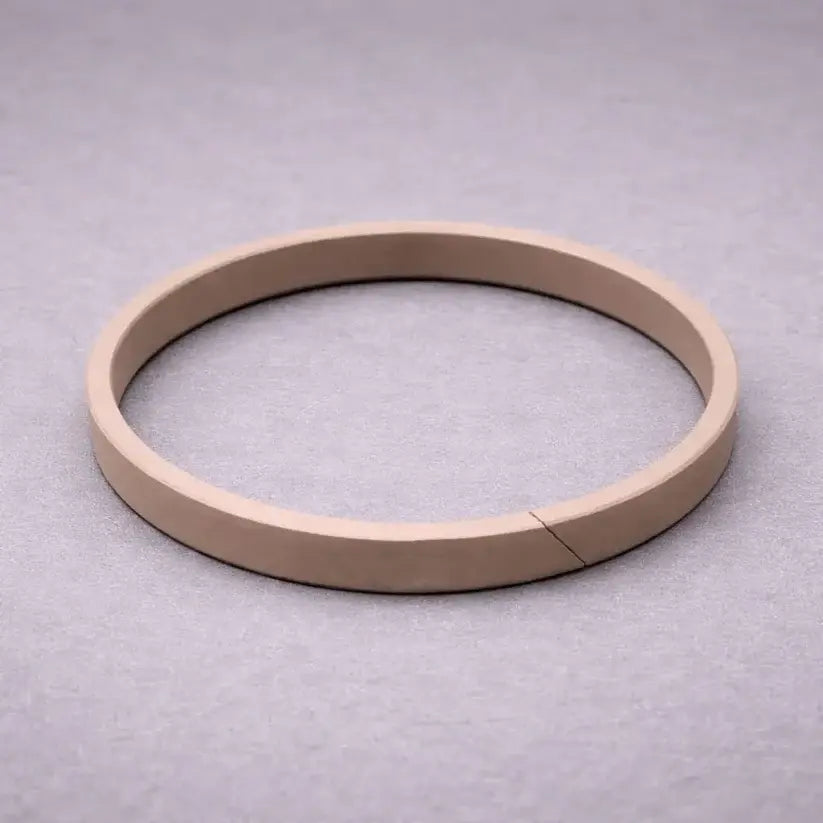

• Cut wear rings / ready-to-install guide rings
• Spiral wear band lengths (cut to size during assembly)
• Flat coil or strip wear bands for large diameters

Material Options & Engineering Behaviour

Material selection is based on PV value (pressure × velocity), lubrication state, side-load intensity and temperature behaviour.

• PTFE-Based (Filled Grades) – Low friction, good emergency running characteristics.
• Fabric-Reinforced Composites – High load capacity and wear resistance for heavy-duty service.
• Phenolic / Resin-Bonded Materials – Stable under demanding industrial loads.
• Engineering Plastics (Nylon / POM / Filled Grades) – Selected for defined duties requiring machinability and dimensional control.

Operating Conditions

Designed for:

• Hydraulic cylinders (higher load and PV conditions)
• Pneumatic cylinders (lower lubrication, dry-running considerations)
• Light, medium and heavy-duty industrial service
• Applications where friction heat and side-load damage must be controlled

Failure Modes Addressed

Correct wear band specification helps prevent:

• Bore scoring and metal-to-metal contact
• Seal edge-loading and premature leakage
• Heat build-up from excessive PV conditions
• Guide ring extrusion or creep under load
• Installation damage at split or lead-in edges

Hardware Interface & Installation Considerations

• Groove width and depth matched to section size
• Correct running clearance and split allowance
• Surface finish compatibility
• Proper strip cutting method for coil/spiral supply

Specification Inputs Required

• Cylinder type (hydraulic or pneumatic)
• Guidance location (piston or rod)
• Bore or rod diameter
• Groove width and depth
• Duty class (light / medium / heavy)
• Speed and cycle rate
• Fluid type and temperature range
• Drawing, CAD file or worn sample

Kaybin supplies wear bands and guide rings to specification for reliable cylinder guidance in industrial applications across South Africa and Africa.
